Battery Type |
LiFePO₄ |
Energy Storage |
2560 Wh |
Rated Voltage |
25.6 V |
Voltage Range |
21.6 ~ 29.2 V |
Max Charge Current |
100 A |
Max Discharge Current |
100 A |
Discharge Cut-Off Voltage |
21.6 V |
Floating Voltage |
28.8 V |
Cycle Life |
>6000 Cycles at 80% DOD |

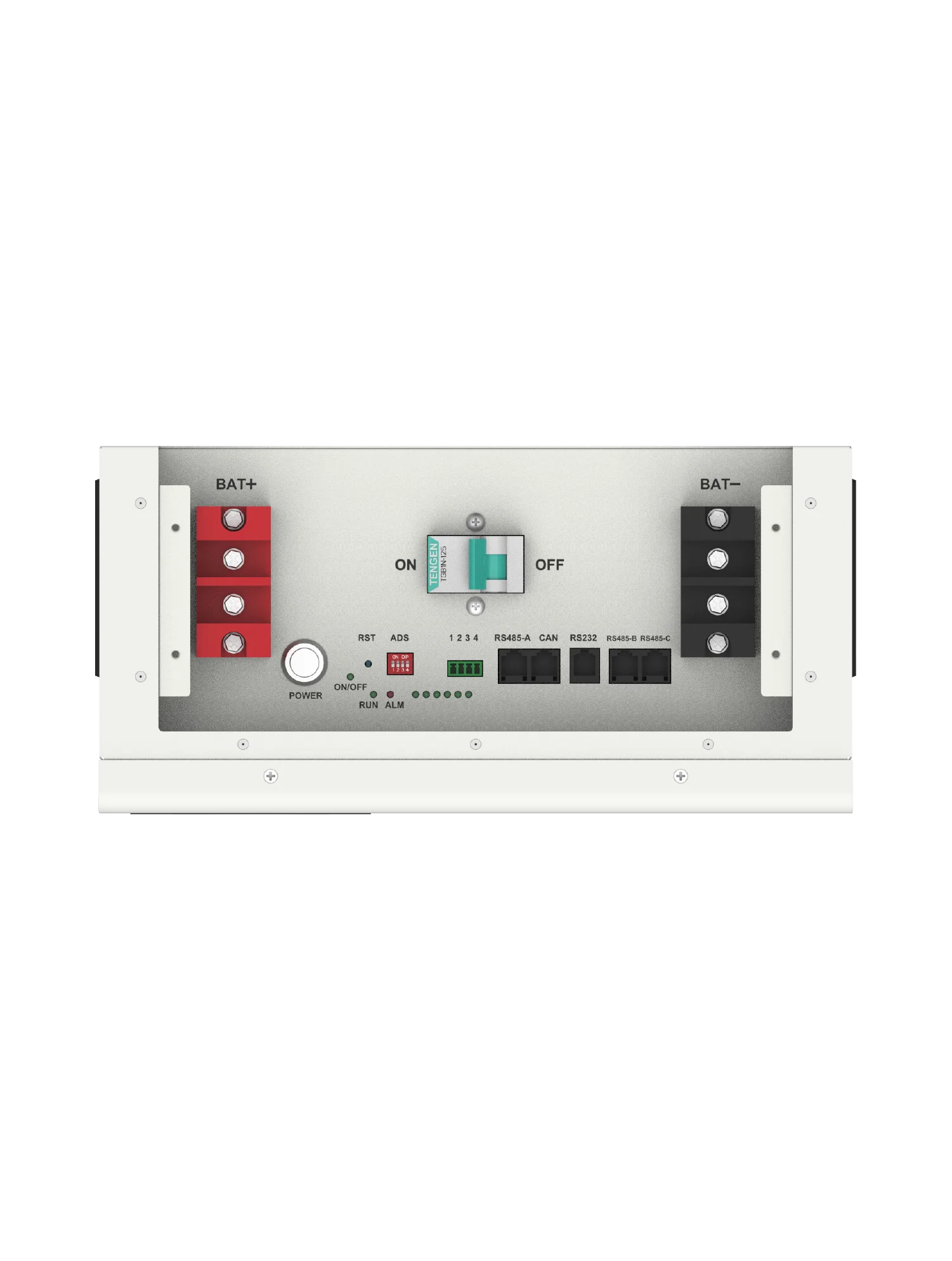

Communication Port |
RS485 / CAN |
HMI |
LCD touchscreen + Status Light + SOC power indicators |
Work Temperature |
-20°C ~ 45°C |
Operation Temperature |
Charge: 0 ~ 45°C, Discharge: -20 ~ 45°C |
Storage Temperature |
-20 ~ 30°C (12 months), 30 ~ 60°C (6 months) |
Weight |
N.W: 23.4 kg - G.W: 25.8 kg |
Installation Type |
Wall / Floor / Rack mounting |
Enclosure Protection |
IP21 |
Cooling Concept |
Natural cooling |
Humidity |
20 ~ 85% RH (non-condensing) |
Certification |
IEC 62477, IEC 62619, IEC 60730, IEC 63056, IEC 61000, UN38.3 |
Warranty |
5 Years |
Compatibility |
and Compatible With IP21 & IP65 Solar Inverters
|
